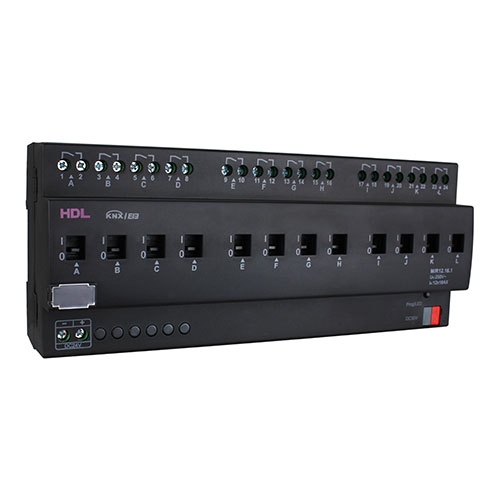

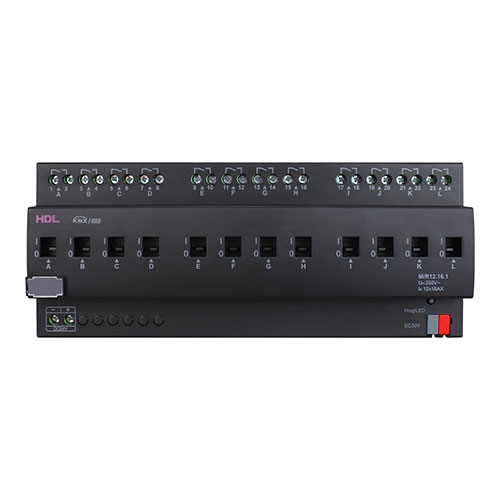

The M/R12.16.1 KNX relay module can supply 12 channels with a current of 16A.Manual channel control is enabled via the modules on-board buttons, this module is able to support diversified devices, and can be applied in to any solution which requires switching control.
Zero power consumption
Using a high performance magnetic launching relay the M/R12.16.1does not consume any power. This is because the relay is only triggered by a DC pulse; a constant DC power source is unneeded.
Reliable and safety
Each of the 12 channels that the module outputs to support 16A. Due to the inclusion of a 50A magnetic relay, the module has a guaranteed stable performance, and lower maintenance requirements. This built in redundancy ensures the module has a long and efficient service life.
Multiple loads
Thanks to the built in 50A magnetic relay, the module can handle a 500A current surge. This enables the module to switch multiple loads from a wide range of sources. From lighting, heating, motors, transformers, valves and power sockets, this module unifies and streamlines control into one simple to install and operate package.
Heating function
Pulse Wave Modulation (PWM) allows heating devices to be efficiently managed, as a desired temperature can be easily maintained. This makes the HDL KNX M/R12.16.1 ideal for situations where precise temperature control is needed.
Manual control
Each channel has full manual control, and independent channel testing. This enables onsite switching of lights and dimming control even if the module is powered off.
Light Protection delay
Each of the modules 12 channels feature a power on protection delay time, this delay time is adjustable from 0-60 minutes. This delay protection safeguards any lights that are connected to the module, ensuring they have a maximised life expectancy and provide hassle free service.
